MASTERBLOCK® 96 Deep Well (Greiner)

Applications

• 96 Deep Well block for crystallization screen reagents

Features

• SBS format, 96 well
• Sterile, individually sealed plates
• Polypropylene
• Seal with AlumaSeal II, Crystal Clear Sealing Film, or Cap Mats

Description

The Greiner 780261 MASTERBLOCK® is a 96 Deep Well polypropylene block (plate). Each well has a fill volume of 1.2 ml. The MASTERBLOCK® is useful for holding crystallization screen reagents when using liquid handling automation or multi channel pipets. Each plate is sterile and packaged individually. Round bottom well for complete reagent recovery. ClearChoice™ virgin polypropylene resin (autoclavable to 121°C). SBS recommended dimensions. Alphanumerically coded wells with chimney-style, round well top.

MASTERBLOCK® 96 深井 (Greiner)
应用
用于结晶筛选试剂的 96 深孔块
特征
SBS 格式，96 孔
无菌、单独密封的盘子
聚丙烯
使用 AlumaSeal II、水晶透明密封膜或盖垫密封
描述
Greiner 780261 MASTERBLOCK® 是一种 96 深孔聚丙烯块（板）。每个孔的填充体积为 1.2 ml。 MASTERBLOCK® 可用于在使用液体处理自动化或多通道移液器时固定结晶筛选试剂。每个盘子都是无菌的并单独包装。圆底孔可完全回收试剂。 ClearChoice™ 纯聚丙烯树脂（可高压灭菌至 121°C）。 SBS 推荐尺寸。带有烟囱式圆形井顶的字母数字编码井。

微孔板盖是 96 深孔格式结晶筛的临时盖。每个试剂孔上带有单独冷凝环的单位置高剖面盖有助于最大限度地减少试剂从 96 个深孔试剂板中蒸发，并保护试剂免受微粒和污染。独立包装的无菌微孔板盖由光学透明的聚苯乙烯制成。格雷纳 656171。

帽垫由醋酸乙烯酯 (EVA) 制成。耐DMSO，可在-20至+60摄氏度的温度范围内使用。适用于密封 Greiner 780261 1 毫升深孔板 (HR3-105)。这些帽垫不可刺穿。提供无菌。 Greiner 部件号 381061。

HR4-527  Microplate Lid  10 plate case

HR3-103  Cap Mat for MASTERBLOCK® pack of 50

Support Material(s)

Related Item(S)

• AlumaSeal™ II Sealing Film and Applicator

Products > Tools & Seeding > Seeding Tool > Seeding Tool

Seeding Tool

Applications  应用

• Streak Seeding 条纹播种

Features 特征

• Natural fiber
• Built-in handle/cover

天然纤维
内置把手/盖子

Description

During streak seeding, one touches the Seeding Tool to crystalline material to dislodge, remove and transfer small crystals (seeds) to a drop that will support the growth of potentially larger and more perfect crystals.

CAT NO

HR8-133  Seeding Tool       5 pack

Support Material(s)

References 参考文献

The plate was developed at the MRC Laboratory of Molecular Biology (Cambridge, United Kingdom) in collaboration with Dr. Jan Löwe and colleagues. It is a result of many years of experience in successful robotic high-throughput crystallization and combines many of the features not earlier available to the crystallographer.

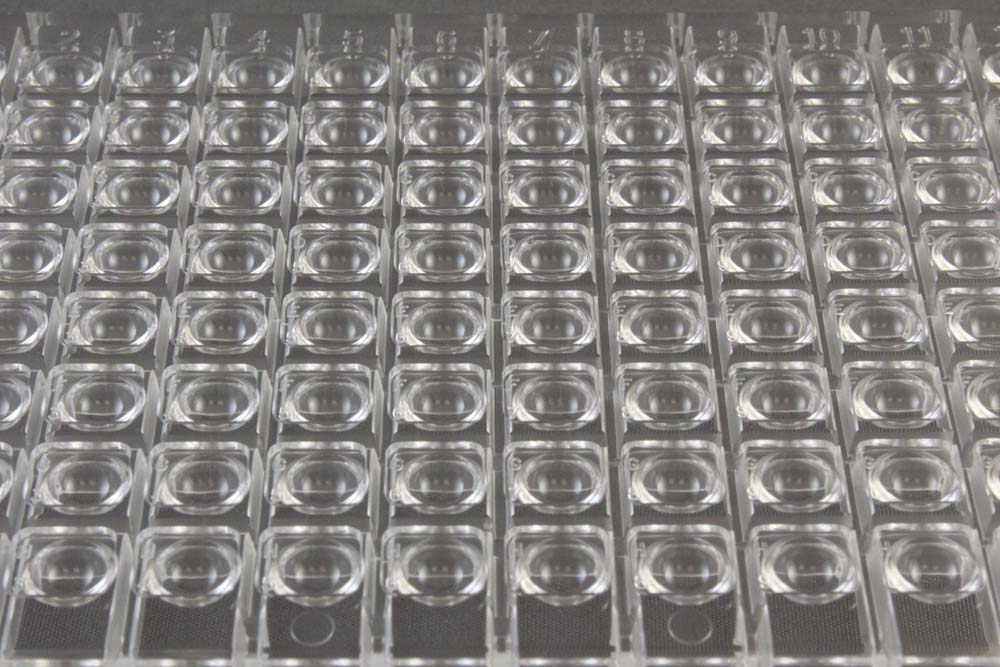

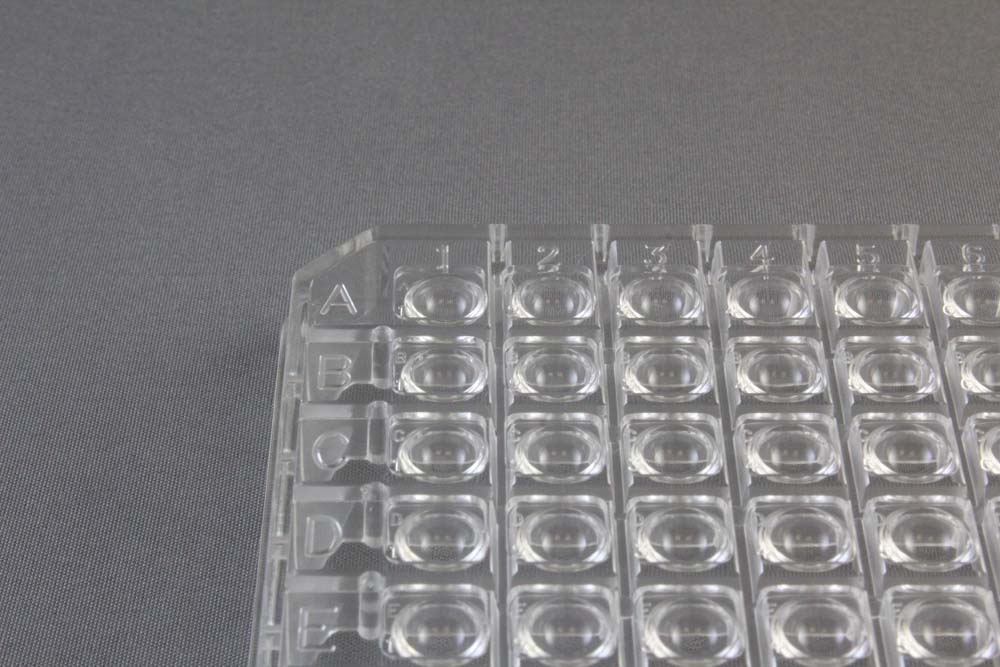

The new MRC Under Oil 96 Well Crystallization Plate is designed for microbatch crystallization using paraffin, silicon oil, or a mixture of the two. Following the initial experiment, evaporation of the drop through the oil allows for second crystallization stage, enabling further crystal growth as a consequence of concentration. This is different from other experiments in that the conditions are then extreme in nature and permit new conditions to arise.

The new MRC Under Oil 96 Well Crystallization Plate offers unique properties that make it ideal for both nanoliter crystallization screening and microliter optimization alike. Made from an optically superior polymer and with a new design of the wells, the plate allows easy crystal viewing and retrieval.

The advantages of the new MRC Under Oil 96 Well Crystallization Plate.

Easy Crystal Retrieval
Raised wide wells make the crystal mounting especially easy.

Easy Viewing
The wells are wide conical and have a polished surface on both sides important for perfect illumination. The micro numbering ensures that you will never get lost again (visible by microscope). The optically superior polymer is even UV transmissible and may be used to differentiate between salt and crystals.

Better Sealing
Wide partition walls between the wells give plenty of area for good sealing with tape for the initial experiments of microbatch. No central bending occurs in this very robust structure.

Recommended Volumes
Typical volumes validated for these plates are 20 µl of oil with a shot through sample delivery of 100 nanoliter to 4 microliter.

SBS Standard
The plates are designed to the 96 well SBS standard for all common holders and external numbering (A – H, 1 – 12) with corner location that make the plate easy to use in a robotic sampler. The plate can also be centrifuged for better results. The unique MRC Under Oil 96 well Crystallization plate offers a new way of microbatch crystallography. The 96 wells are optically perfect, designed to observe crystals under a microscope.

Unique Polymer
The proprietary polymer is optically perfect – ultra low binding and guaranteed to have central drop location in the well. There are no static effects and thus micro-droplet jumping is avoided.

描述
MRC Under Oil 96 孔结晶板专为微批次结晶而设计。该板是在 MRC 分子生物学实验室（英国剑桥）与 Jan Löwe 博士及其同事合作开发的。它是在成功的机器人高通量结晶方面多年经验的结晶，并结合了晶体学家早期无法获得的许多功能。

新型 MRC Under Oil 96 孔结晶板设计用于使用石蜡、硅油或两者的混合物进行微批次结晶。在最初的实验之后，液滴通过油的蒸发允许第二个结晶阶段，使由于浓度的结果进一步晶体生长。这与其他实验的不同之处在于，条件在本质上是极端的，并允许出现新的条件。

新的 MRC Under Oil 96 孔结晶板具有独特的特性，使其成为纳升结晶筛选和微升优化等的理想选择。该板由光学优异的聚合物制成，并采用新的孔设计，可以轻松查看和检索晶体。

新型 MRC Under Oil 96 井结晶板的优点。

轻松取回水晶
凸起的宽井使水晶安装特别容易。

轻松查看
井是宽圆锥形，两侧都有抛光表面，这对于完美的照明很重要。微编号确保您永远不会再次迷路（显微镜可见）。光学优异的聚合物甚至可透过紫外线，可用于区分盐和晶体。

更好的密封
孔之间的宽隔墙为微批次的初始实验提供了足够的区域，可使用胶带进行良好的密封。在这种非常坚固的结构中不会发生中心弯曲。

推荐卷
为这些板验证的典型体积是 20 µl 油，一次通过 100 纳升至 4 微升的样品输送。

SBS标准
这些板根据 96 孔 SBS 标准设计，适用于所有常见支架和外部编号（A – H，1 – 12），带有角位置，使该板易于在机器人采样器中使用。该板也可以离心以获得更好的结果。独特的 MRC Under Oil 96 孔结晶板提供了一种新的微批次结晶学方法。 96 个孔在光学上是完美的，设计用于在显微镜下观察晶体。

独特的聚合物
专有聚合物在光学上是完美的 – 超低结合并保证在孔中具有中心液滴位置。没有静电效应，因此避免了微滴跳跃。

 MRC 96 Well Under Oil Plate (HR3-102/HR3-104) Description MRC 96 Well Under Oil Plate (HR3-102/HR3-104) Drawing

The plate was developed at the MRC Laboratory of Molecular Biology (Cambridge, United Kingdom) in collaboration with Dr. Jan Löwe. Designed to meet the stringent requirements specified by crystallographers, and made of proprietary new materials that facilitate enhanced imaging, the MRC Crystallization Plate provides easier access and removal of crystals, improved mixing of reagent and sample, and reduced sample and reagent volumes.

Easy Crystal Retrieval Raised wide wells make the crystal mounting especially easy.

Easy Viewing The wells are a wide conical shape and have a lens effect for perfect illumination. The micro-numbering ensures you will never get lost again when using the microscope. The optically superior polymer is UV transmissible and may be used to differentiate between salt and protein crystals.

Better Sealing Wide partition walls between the wells give plenty of area for sealing with tape or film. No central bending occurs in this very robust structure.

Wide Range of Volumes Typical volumes are 50 to 100 µl of reservoir and 100 nl to 5 µl drop size. The 192 optical wells offer twice the number of experiments of experimental constructions.

SBS Standard The plate is designed to the 96 well SBS standard for all common holders and external alphanumeric identification. The MRC Crystallization Plate is suitable for centrifugation.

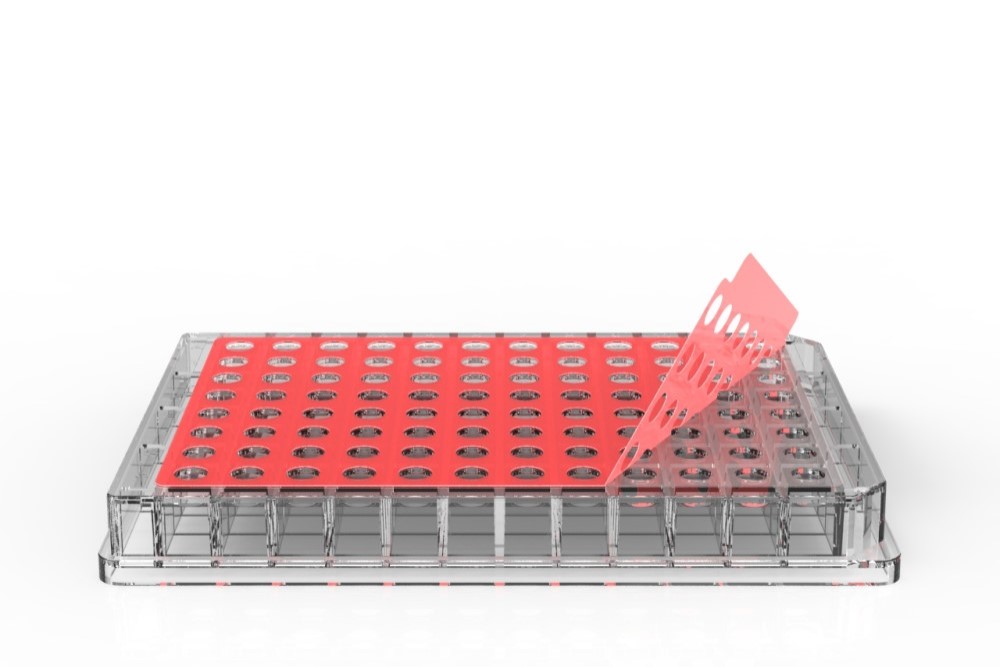

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).

描述
Swissci 制造的 MRC 2 孔结晶板是一个 2 滴室、96 孔结晶板，用于坐滴蒸汽扩散。该板由 UVP 聚合物模制而成，与 UV 兼容。

该板是在 MRC 分子生物学实验室（英国剑桥）与 Jan Löwe 博士合作开发的。 MRC 结晶板专为满足晶体学家指定的严格要求而设计，由促进增强成像的专有新材料制成，可更轻松地接触和去除晶体，改善试剂和样品的混合，并减少样品和试剂体积。

轻松取回水晶 凸起的宽孔使水晶安装特别容易。

易于观察 孔为宽锥形，具有透镜效果，可实现完美照明。微编号确保您在使用显微镜时不会再迷路。光学优异的聚合物可透过紫外线，可用于区分盐和蛋白质晶体。

更好的密封孔之间的宽隔墙为用胶带或薄膜密封提供了足够的空间。在这种非常坚固的结构中不会发生中心弯曲。

广泛的体积范围 典型的体积是 50 到 100 µl 的容器和 100 nl 到 5 µl 的液滴大小。 192 个光井提供了两倍于实验结构的实验次数。

SBS 标准板设计符合 96 孔 SBS 标准，适用于所有常见支架和外部字母数字识别。 MRC 结晶板适用于离心。

可以使用 Crystal Clear Sealing Film (HR3-609)、3 英寸宽的 Crystal Clear Sealing Tape (HR4-506) 或 ClearSeal Film™ (HR4-521) 密封板。

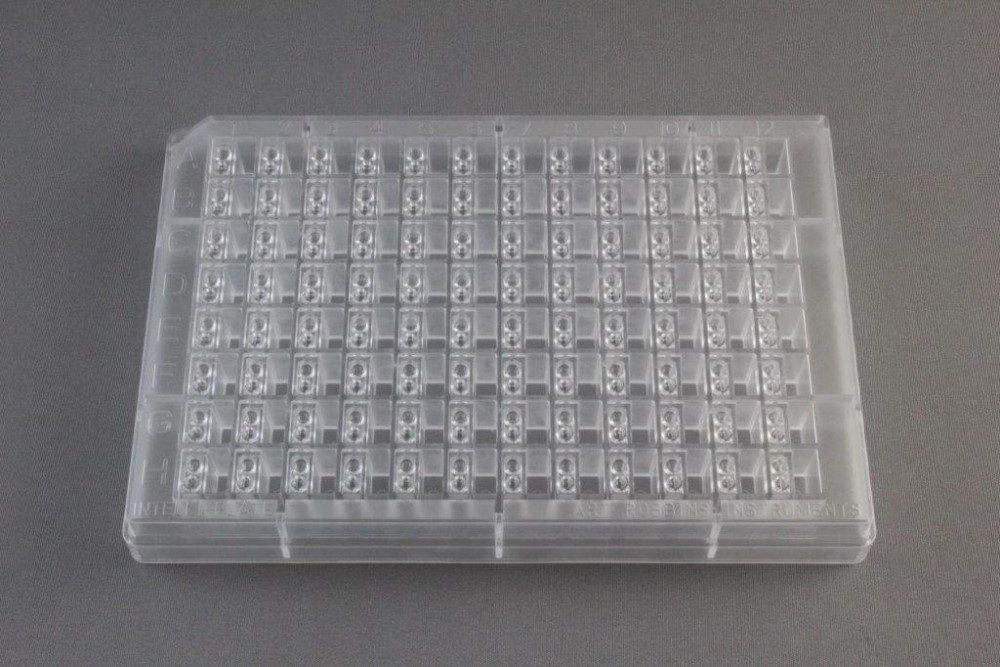

HR3-082/HR3-083 MRC 2 Well Crystallization Plate

 MRC 2 Well (HR3-082/HR3-083) Plate Drawing

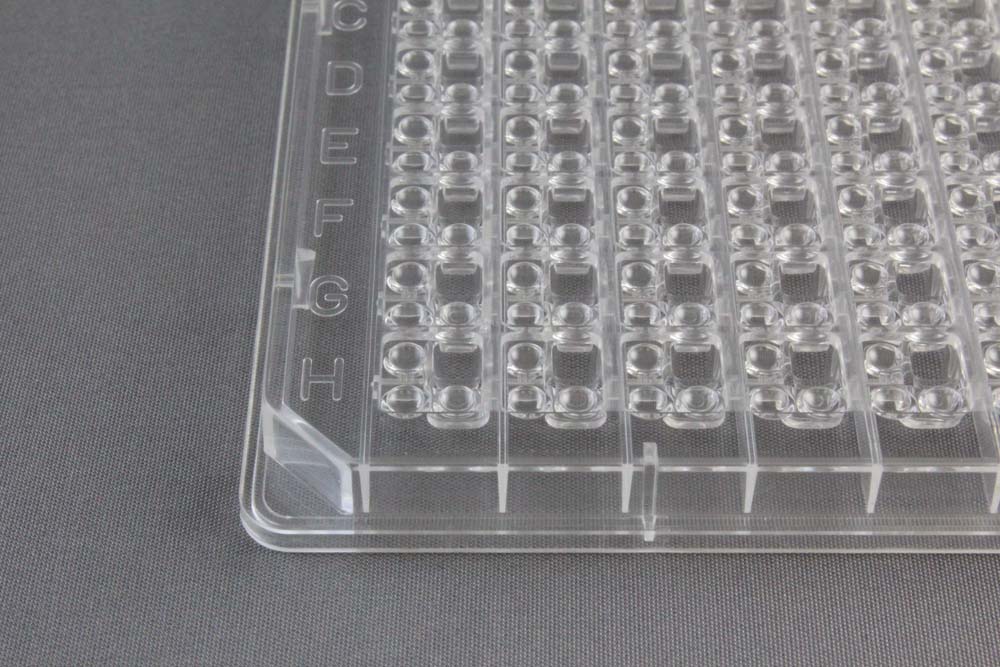

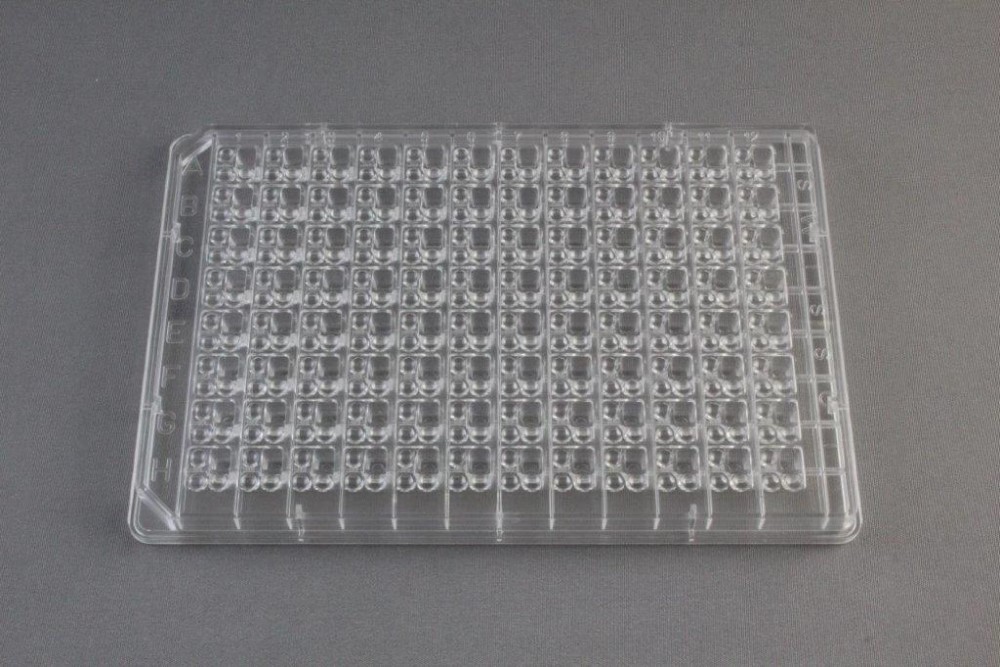

The MRC 2 Well Crystallization Plate in UVXPO is made from a new polymer mixture that means crystals can be viewed in UV, Polar and Visible light. UVXPO is short for UV compatible as well as excellent uniform (zero) background when using cross polarized light. The MRC 2 Well Crystallization Plate in UVXPO offers unique properties that make it ideal for both nanoliter crystallization screening and microliter optimization alike. Made from optically superior polymer and with a new design of the wells, the plate allows easy crystal viewing and retrieval.

Advantages
• Easy crystal retrieval
• Raised wide wells make the crystal mounting especially easy.

Easy viewing
• Crystals can be viewed in UV, Polar and Visible light.
• Uniform (zero) background when using cross polarized light.
• The wells are a wide conical shape and have a lens effect for perfect illumination.
• Micro-numbering ensures you will never get lost again (visible by microscope).
• The polymer is UV transmissible and may be used to differentiate between salt and protein crystals.

Better sealing
• Wide partition walls between the wells give plenty of area for good sealing with tape.
• No central bending occurs in this very robust structure.
• Excellent long term storage – no sample evaporation.

Wide range of volumes
• Typical volumes are 50-100 µl of reservoir and 100 nl – 5 µl drop size.
• The 192 optical wells offer twice the number of experiments

ANSI/SLAS 1-2004 Standard
• The plates are designed to the 96-well ANSI/SLAS 1-2004 standards for all common holders and external numbering (A-H, 1-12) with corner location make the plate easy to use in a robotic sampler.
• The UVXPO plate is suitable for centrifugation.
• The unique 2 drop protein crystallization plate offers a new way of sitting drop crystallography.
• The 192 wells are optically perfect designed to observe crystals under a microscope.
• The wells are doubled, providing an unique security of growing crystals.

Features
• Easy to fill 96-well structure – typically 85 µl per buffer well.
• Standard ANSI/SLAS 1-2004 form for automation.
• Optically perfect wells with lens effect for a better view with microscope.
• Microscopic identifier within wells, simplifying the orientation under the microscope.
• Maximum volume of the buffer reservoir is 100 µl, typically 100 nl is used for the protein well filling.
• Grown crystals are easy to identify and to remove from well due to a low binding polymer.
• Plate with 2 wells for each sample, better growing security with duplicates or the ability to use well two as a mixing station.
• Wells fill without micro-droplets jumping out due to static effects.
• Wells can be individually sealed with a perfectly flat upper surface
• There is a large land area designed to ensure integrity of each well section.
• Clean room produced ensuring no dust particles are in the product.

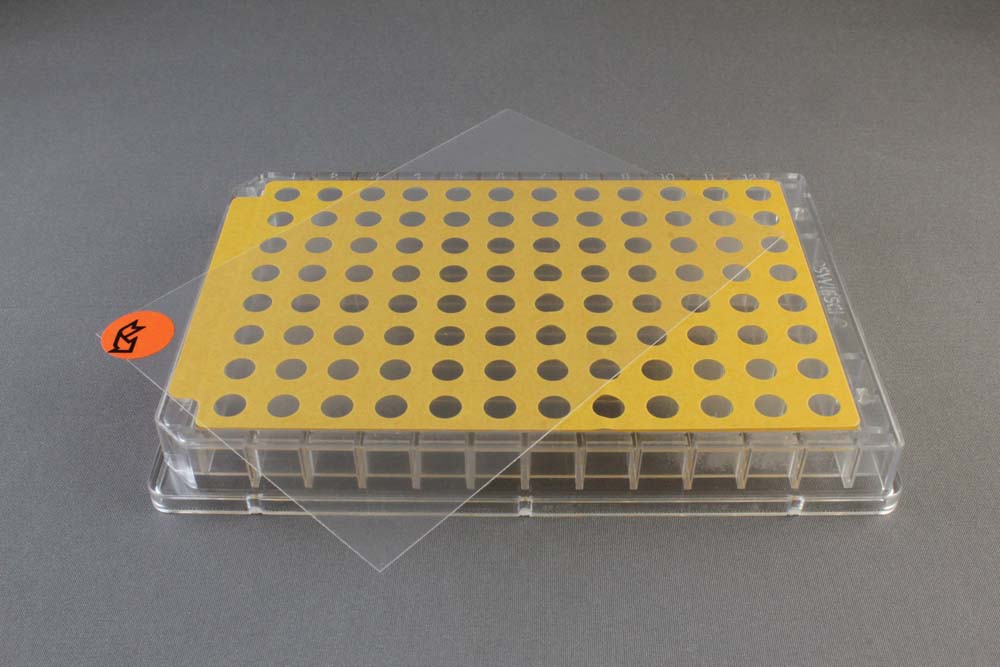

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).

描述
Swissci 制造的 MRC 2 孔结晶板是一个 2 滴室、96 孔结晶板，用于坐滴蒸汽扩散。由 UVXPO 聚合物模制而成，这意味着可以在紫外线 (UV)、偏振和可见光下观察晶体。

UVXPO 中的 MRC 2 孔结晶板由一种新型聚合物混合物制成，这意味着可以在紫外线、极光和可见光下观察晶体。 UVXPO 是 UV 兼容以及使用交叉偏振光时出色的均匀（零）背景的缩写。 UVXPO 中的 MRC 2 孔结晶板具有独特的特性，使其成为纳升结晶筛选和微升优化等的理想选择。该板由光学性能优异的聚合物制成，并采用新的孔设计，可以轻松查看和检索晶体。

好处
• 轻松取回水晶
• 凸起的宽孔使晶体安装特别容易。

轻松查看
• 可以在紫外光、极光和可见光下观察晶体。
• 使用交叉偏振光时的均匀（零）背景。
• 孔为宽锥形，具有透镜效果，可实现完美照明。
• 微编号确保您再也不会迷路（显微镜可见）。
• 该聚合物可透过紫外线，可用于区分盐和蛋白质晶体。

更好的密封
• 孔之间的宽隔墙为用胶带良好密封提供了足够的空间。
• 在这种非常坚固的结构中不会发生中心弯曲。
• 出色的长期储存 – 无样品蒸发。

范围广
• 典型体积为 50-100 µl 储液器和 100 nl – 5 µl 液滴尺寸。
• 192 个光孔提供两倍的实验次数

ANSI/SLAS 1-2004 标准
• 这些板的设计符合适用于所有常见支架的 96 孔 ANSI/SLAS 1-2004 标准，外部编号（A-H、1-12）带有拐角位置，使该板易于在机器人进样器中使用。
• UVXPO 板适用于离心。
• 独特的2 滴蛋白质结晶板提供了一种新的坐滴结晶学方法。
• 192 个孔的光学设计完美，可在显微镜下观察晶体。
• 孔加倍，为生长晶体提供了独特的安全性。

特征
• 易于填充 96 孔结构 – 每个缓冲液孔通常为 85 µl。
• 用于自动化的标准ANSI/SLAS 1-2004 表格。
• 具有镜头效果的光学完美孔，可在显微镜下获得更好的视野。
• 孔内的显微识别器，简化了显微镜下的定位。
• 缓冲液容器的最大体积为 100 µl，通常 100 nl 用于填充蛋白质孔。
• 由于聚合物的结合力低，生长的晶体易于识别和从孔中去除。
• 每个样品有 2 个孔的板，通过复制获得更好的生长安全性或能够将两个孔用作混合站。
• 微滴不会因静电效应而跳出井中。
• 孔可以用完全平坦的上表面单独密封
• 土地面积很大，旨在确保每个井段的完整性。
• 洁净室，确保产品中没有灰尘颗粒。

可以使用 Crystal Clear Sealing Film (HR3-609)、3 英寸宽的 Crystal Clear Sealing Tape (HR4-506) 或 ClearSeal Film™ (HR4-521) 密封板。



 HR3-106 HR3-107 MRC 2 Well UVXPO Plate Product Information HR3-106 HR3-107 MRC 2 Well UVXPO Plate Drawing

The plate was developed in collaboration with very experienced protein crystallographers. It is the result of many years of experience in successful robotic high-throughput crystallization and combines many of the necessary features not earlier available to the crystallographer.

The SWISSCI 3 Lens crystallization Plate offers unique properties that make it ideal for both nanoliter crystallization screening and mircoliter optimization alike. Made from optically superior polymer (UVP) and with a new design of the wells, the plate allows easy crystal viewing and retrieval.

The Advantages of the 3 Lens Crystallization Plate Easy crystal retrieval Raised wide wells make the crystal mounting especially easy.

Easy viewing The wells are a wide conical shape and have a lens effect for perfect illumination. The micro-numbering ensures you will never get lost again (visible by microscope). The optically superior polymer is UV transmissible and may be used to differentiate between salt and protein crystals.

Better sealing Wide partition walls between the wells give plenty of area for good sealing with tape. No central bending occurs in this very robust structure. Excellent long term storage – no sample evaporation.

Wide range of volumes Typical volumes are 20-40 µl of reservoir and 50 nl-5 µl drop size. The 288 optical wells offer three times the number of experimental constructions.

ANSI/SLAS 1-2004 Standard The plates are designed to the 96-well ANSI/SLAS 1-2004 standards for all common holders and external numbering (A-H, 1-12)with corner location make the plate easy to use in a robotic sampler. The 3 Lens plate is suitable for centrifugation. The unique 3 drop protein crystallization plate offers a new way of sitting-drop crystallography. The 288 wells are optically perfect designed to observe crystals under a microscope.

3 Lens plate features Easy to fill 96-lens structure – typically 30 microlitres per buffer lens. Standard ANSI/SLAS 1-2004 form for automation. Optically perfect wells with lens effect for a better view with microscope. Microscopic identifier within wells, simplifying the orientation under the microscope. Maximum volume of the buffer reservoir is 40 microlitres. Grown crystals are easy to identify and to remove from lens due to a low-binding polymer. Plate with 3 lenses for each sample, better growing security with triplicates or the ability to use lens two and lens three as mixing stations. Lenses fill without micro-droplets jumping out due to static effects. Wells can be individually sealed with a perfectly flat upper surface – there is a large land area designed to ensure integrity of each lens section. The profile allows for easier storage. Low volume buffer well enables savings on reagents. Triplicates allow for 288 constructs per plate.

描述
SWISSCI 3 透镜结晶板是一种理想的蛋白质结晶产品，以 96 孔板形式呈现。

该板是与非常有经验的蛋白质晶体学家合作开发的。它是在成功的机器人高通量结晶方面多年经验的结晶，并结合了许多晶体学家早期无法获得的必要特征。

SWISSCI 3 Lens 结晶板具有独特的特性，使其成为纳升结晶筛选和微升优化等的理想选择。该板由光学优异的聚合物 (UVP) 制成，并采用新的孔设计，可轻松查看和检索晶体。

3 透镜结晶板的优点 易于取回晶体 凸起的宽孔使晶体安装特别容易。

易于查看 孔为宽锥形，具有透镜效果，可实现完美照明。微编号确保您再也不会迷路（显微镜可见）。光学优异的聚合物可透过紫外线，可用于区分盐和蛋白质晶体。

更好的密封 孔之间的宽隔墙为使用胶带进行良好密封提供了足够的区域。在这种非常坚固的结构中不会发生中心弯曲。出色的长期储存 – 无样品蒸发。

体积范围广 典型体积为 20-40 µl 储液器和 50 nl-5 µl 液滴尺寸。 288 个光井提供了三倍于实验结构的数量。

ANSI/SLAS 1-2004 标准板设计符合 96 孔 ANSI/SLAS 1-2004 标准，适用于所有常见支架和带有角位置的外部编号 (AH, 1-12) 使板易于在机器人进样器中使用. 3 透镜板适用于离心。独特的 3 滴蛋白质结晶板提供了一种新的坐滴结晶学方法。 288 个孔的光学设计非常完美，可用于在显微镜下观察晶体。

3 透镜板特性 易于填充 96 透镜结构 – 每个缓冲透镜通常为 30 微升。用于自动化的标准 ANSI/SLAS 1-2004 表格。具有镜头效果的光学完美孔，可在显微镜下获得更好的视野。孔内的显微标识符，简化了显微镜下的定位。缓冲液储存器的最大体积为 40 微升。由于低结合聚合物，生长的晶体很容易识别和从镜片上去除。每个样品具有 3 个透镜的板，通过三次重复提高安全性或使用透镜 2 和透镜 3 作为混合站的能力。镜头填充时不会因静电效果而跳出微滴。孔可以用完全平坦的上表面单独密封 – 大面积的土地面积旨在确保每个镜头部分的完整性。配置文件允许更容易的存储。低容量缓冲液井可节省试剂。一式三份允许每板 288 个构建体。

CAT NO

 Swissci 3 Well Midi (HR3-123/HR3-125) Plate Drawing

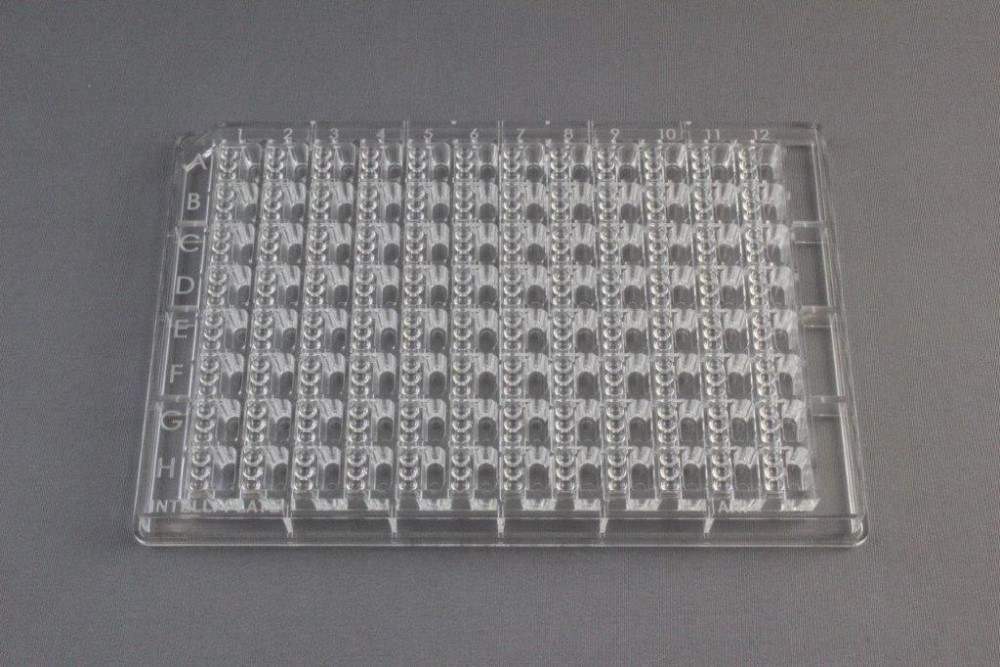

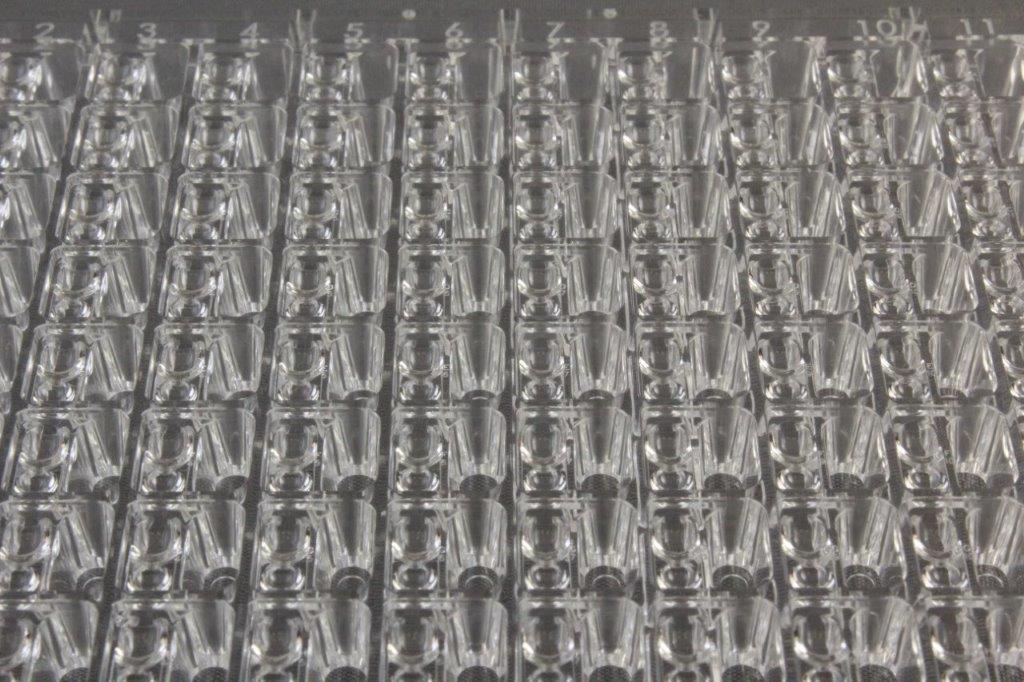

The SWISSCI UVXPO 3 Lens Crystallisation Plate is made from a new polymer mixture that means crystals can be viewed in UV, Polar and Visible light. UVXPO is short for UV compatible as well as excellent uniform (zero) background when using cross polarised light.

The SWISSCI 3 Lens Crystallisation Plate is an ideal product for protein crystallisation presented in a 96-well plate format.

The Advantages of the 3 Lens Crystallization Plate

Easy crystal retrieval
Raised wide wells make the crystal mounting especially easy.

Easy viewing
Crystals can be viewed in UV, Polar and Visible light.
Uniform (zero) background when using cross polarised light.
The wells are a wide conical shape and have a lens effect for perfect illumination.
The micro-numbering ensures you will never get lost again (visible by microscope).
The optically superior polymer is UV transmissible and may be used to differentiate between salt and protein crystals.

Better sealing
Wide partition walls between the wells give plenty of area for good sealing with tape.
No central bending occurs in this very robust structure.
Excellent long term storage – no sample evaporation.

Wide range of volumes
Typical volumes are 20-40 µl of reservoir and 50 nl-5 µl drop size. The 288 optical wells offer three times the number of experimental constructions.

ANSI/SLAS 1-2004 Standard
The plates are designed to the 96-well ANSI/SLAS 1-2004 standard for all common holders and external numbering (A-H, 1-12) with corner location make the plate easy to use in a robotic sampler.
The 3 Lens plate is suitable for centrifugation.
The unique 3 drop protein crystallisation plate offers a new way of sitting-drop crystallography.
The 288 wells are optically perfect designed to observe crystals under a microscope.

3 Lens plate features
Easy to fill 96-lens structure – typically 30 microlitres per buffer lens.
Standard ANSI/SLAS 1-2004 Standard form for automation.
Optically perfect wells with lens effect for a better view with microscope.
Microscopic identifier within wells, simplifying the orientation under the microscope.
Maximum volume of the buffer reservoir is 40 microlitres, typically 10 nanolitres is used for the protein well filling.
Grown crystals are easy to identify and to remove from lens due to a low-binding polymer.
Plate with 3 lenses for each sample, better growing security with triplicates or the ability to use lens two and lens threeas mixing stations.
Lenses fill without micro-droplets jumping out due to static effects.
Wells can be individually sealed with a perfectly flat upper surface – there is a large land area designed to ensureintegrity of each lens section.
The profile allows for easier storage.
Low volume buffer well enables savings on reagents.
Triplicates allow for 288 constructs per plate.

描述
SWISSCI 3 透镜结晶板是一种理想的蛋白质结晶产品，以 96 孔板形式呈现。

SWISSCI UVXPO 3 镜片结晶板由新型聚合物混合物制成，这意味着可以在紫外线、极光和可见光下观察晶体。 UVXPO 是 UV 兼容以及使用交叉偏振光时出色的均匀（零）背景的缩写。

SWISSCI 3 Lens 结晶板是一种理想的蛋白质结晶产品，采用 96 孔板形式。

3镜片结晶板的优点

轻松取回水晶
凸起的宽井使水晶安装特别容易。

轻松查看
可以在紫外光、极光和可见光下观察晶体。
使用交叉偏振光时的均匀（零）背景。
井是宽圆锥形，并具有完美照明的透镜效果。
微编号确保您再也不会迷路（显微镜可见）。
光学优异的聚合物可透过紫外线，可用于区分盐和蛋白质晶体。

更好的密封
孔之间的宽隔墙提供了足够的区域，以便用胶带进行良好的密封。
在这种非常坚固的结构中不会发生中心弯曲。
出色的长期储存 – 无样品蒸发。

范围广
典型的体积是 20-40 µl 的水库和 50 nl-5 µl 的液滴大小。 288 个光井提供了三倍于实验结构的数量。

ANSI/SLAS 1-2004 标准
这些板的设计符合 96 孔 ANSI/SLAS 1-2004 标准，适用于所有常见支架，外部编号（A-H、1-12）带有角位置，使板易于在机器人采样器中使用。
3 透镜板适用于离心。
独特的 3 滴蛋白质结晶板提供了一种新的坐滴结晶学方法。
288 个孔的光学设计非常完美，可用于在显微镜下观察晶体。

3 透镜板特性
易于填充的 96 透镜结构 – 每个缓冲透镜通常为 30 微升。
标准 ANSI/SLAS 1-2004 自动化标准形式。
具有镜头效果的光学完美孔，可在显微镜下获得更好的视野。
孔内的显微标识符，简化了显微镜下的定位。
缓冲液储存器的最大体积为 40 微升，通常 10 纳升用于蛋白质孔填充。
由于低结合聚合物，生长的晶体很容易识别和从镜片上去除。
每个样品带有 3 个镜片的板，通过三次重复提高安全性或使用镜片二和镜片三作为混合站的能力。
镜头填充时不会因静电效果而跳出微滴。
孔可以用完全平坦的上表面单独密封 – 大面积的土地面积旨在确保每个镜头部分的完整性。
配置文件允许更容易的存储。
低容量缓冲液井可节省试剂。
一式三份允许每板 288 个构建体。



 Swissci 3 Well Midi UVXPO (HR3-193/HR3-194) Plate Drawing

The plate was developed in collaboration with very experienced protein crystallographers. It is the result of many years of experience in successful robotic high-throughput crystallization and combines many of the necessary features not earlier available to the crystallographer.

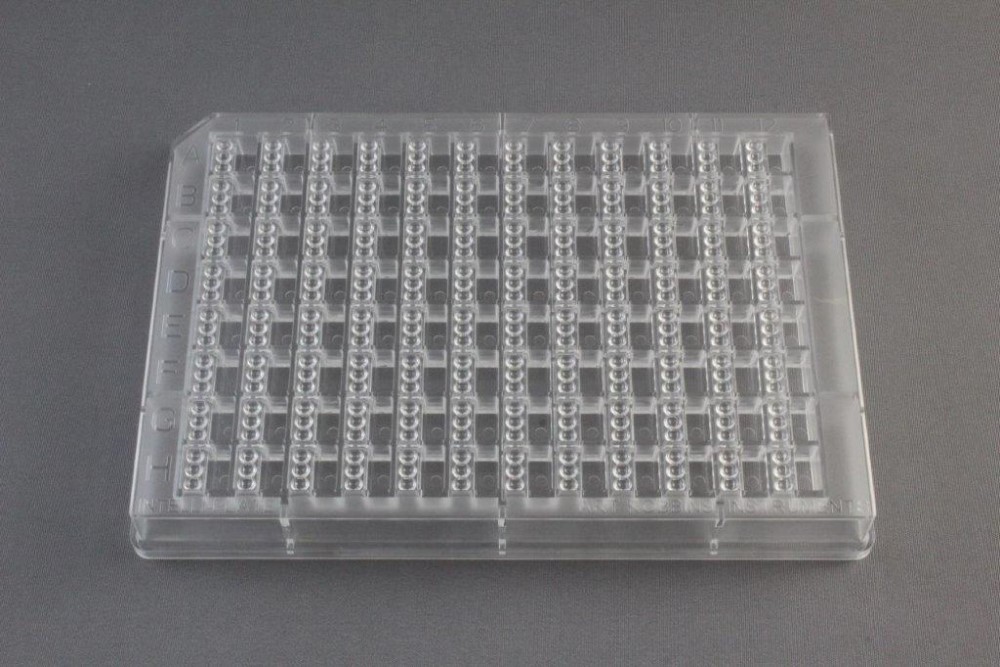

The SWISSCI 3 Lens crystallization Plate offers unique properties that make it ideal for both nanoliter crystallization screening and mircoliter optimization alike. Made from optically superior polymer (UVP) and with a new design of the wells, the plate allows easy crystal viewing and retrieval.

The Advantages of the 3 Lens Crystallization Plate Easy crystal retrieval Raised wide wells make the crystal mounting especially easy.

Easy viewing The wells are a wide conical shape and have a lens effect for perfect illumination. The micro-numbering ensures you will never get lost again (visible by microscope). The optically superior polymer is UV transmissible and may be used to differentiate between salt and protein crystals.

Better sealing Wide partition walls between the wells give plenty of area for good sealing with tape. No central bending occurs in this very robust structure. Excellent long term storage – no sample evaporation.

Wide range of volumes Typical volumes are 20-40 µl of reservoir and 50 nl-5 µl drop size. The 288 optical wells offer three times the number of experimental constructions.

ANSI/SLAS 1-2004 Standard The plates are designed to the 96-well ANSI/SLAS 1-2004 standards for all common holders and external numbering (A-H, 1-12)with corner location make the plate easy to use in a robotic sampler. The 3 Lens plate is suitable for centrifugation. The unique 3 drop protein crystallization plate offers a new way of sitting-drop crystallography. The 288 wells are optically perfect designed to observe crystals under a microscope.

3 Lens plate features Easy to fill 96-lens structure – typically 30 microlitres per buffer lens. Standard ANSI/SLAS 1-2004 form for automation. Optically perfect wells with lens effect for a better view with microscope. Microscopic identifier within wells, simplifying the orientation under the microscope. Maximum volume of the buffer reservoir is 40 microlitres. Grown crystals are easy to identify and to remove from lens due to a low-binding polymer. Plate with 3 lenses for each sample, better growing security with triplicates or the ability to use lens two and lens three as mixing stations. Lenses fill without micro-droplets jumping out due to static effects. Wells can be individually sealed with a perfectly flat upper surface – there is a large land area designed to ensure integrity of each lens section. The profile allows for easier storage. Low volume buffer well enables savings on reagents. Triplicates allow for 288 constructs per plate.

描述
SWISSCI 3 透镜结晶板是一种理想的蛋白质结晶产品，以 96 孔板形式呈现。

该板是与非常有经验的蛋白质晶体学家合作开发的。它是在成功的机器人高通量结晶方面多年经验的结晶，并结合了许多晶体学家早期无法获得的必要特征。

SWISSCI 3 Lens 结晶板具有独特的特性，使其成为纳升结晶筛选和微升优化等的理想选择。该板由光学优异的聚合物 (UVP) 制成，并采用新的孔设计，可轻松查看和检索晶体。

3 透镜结晶板的优点 易于取回晶体 凸起的宽孔使晶体安装特别容易。

易于查看 孔为宽锥形，具有透镜效果，可实现完美照明。微编号确保您再也不会迷路（显微镜可见）。光学优异的聚合物可透过紫外线，可用于区分盐和蛋白质晶体。

更好的密封 孔之间的宽隔墙为使用胶带进行良好密封提供了足够的区域。在这种非常坚固的结构中不会发生中心弯曲。出色的长期储存 – 无样品蒸发。

体积范围广 典型体积为 20-40 µl 储液器和 50 nl-5 µl 液滴尺寸。 288 个光井提供了三倍于实验结构的数量。

ANSI/SLAS 1-2004 标准板设计符合 96 孔 ANSI/SLAS 1-2004 标准，适用于所有常见支架和带有角位置的外部编号 (AH, 1-12) 使板易于在机器人进样器中使用. 3 透镜板适用于离心。独特的 3 滴蛋白质结晶板提供了一种新的坐滴结晶学方法。 288 个孔的光学设计非常完美，可用于在显微镜下观察晶体。

3 透镜板特性 易于填充 96 透镜结构 – 每个缓冲透镜通常为 30 微升。用于自动化的标准 ANSI/SLAS 1-2004 表格。具有镜头效果的光学完美孔，可在显微镜下获得更好的视野。孔内的显微标识符，简化了显微镜下的定位。缓冲液储存器的最大体积为 40 微升。由于低结合聚合物，生长的晶体很容易识别和从镜片上去除。每个样品具有 3 个透镜的板，通过三次重复提高安全性或使用透镜 2 和透镜 3 作为混合站的能力。镜头填充时不会因静电效果而跳出微滴。孔可以用完全平坦的上表面单独密封 – 大面积的土地面积旨在确保每个镜头部分的完整性。配置文件允许更容易的存储。低容量缓冲液井可节省试剂。一式三份允许每板 288 个构建体。

HR3-205/HR3-206 3 Well Low Profile Crystallization Plate Swissci 3W96TLP-UVP

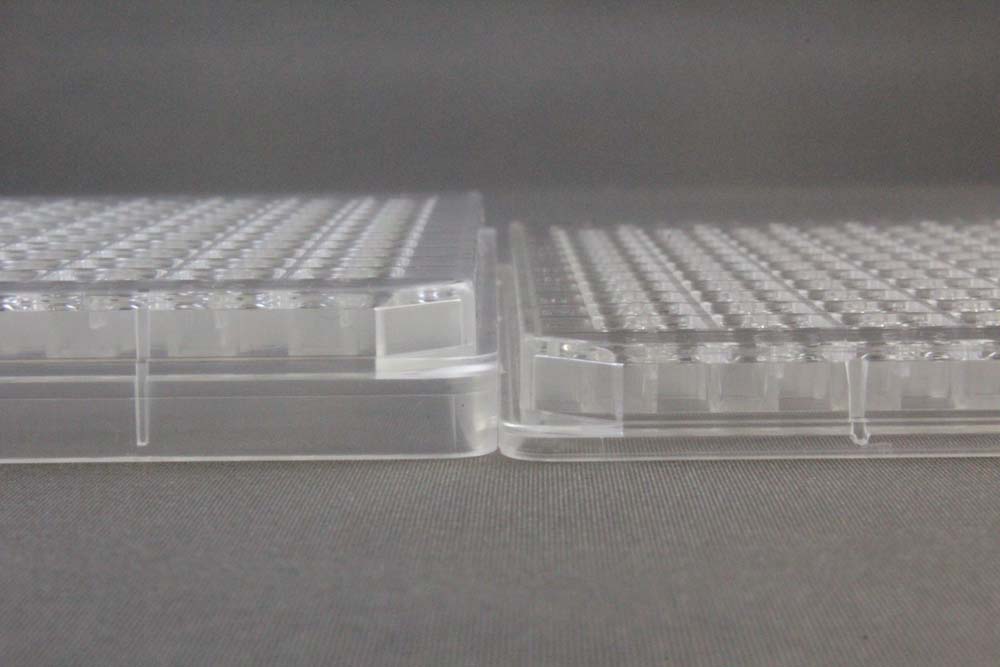

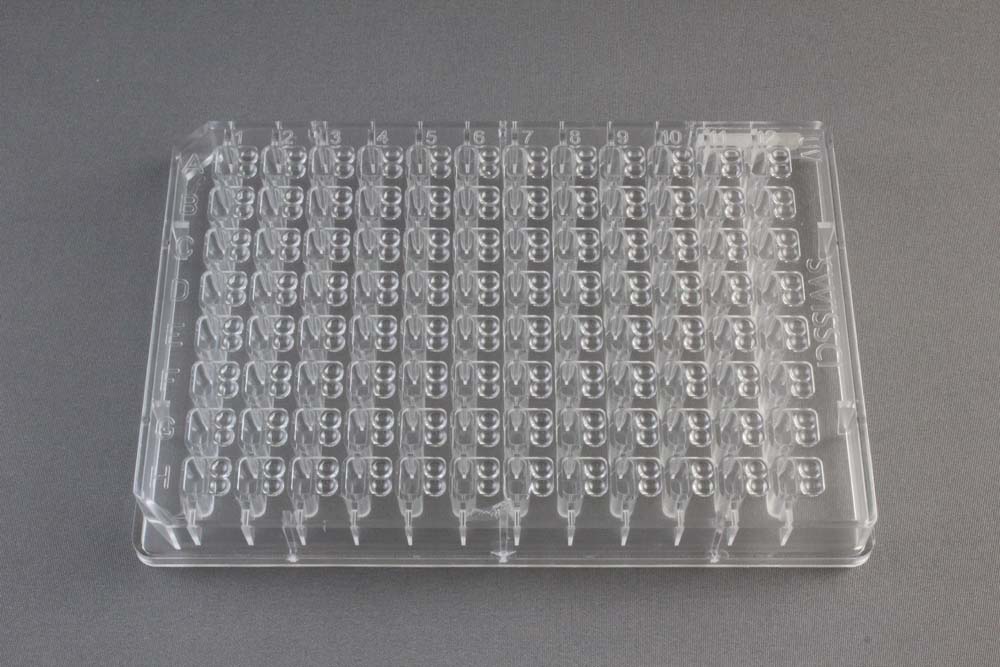

3 Well Low Profile Crystallization Plate (Swissci)

3 Well Low Profile Crystallization Plate (Swissci)

 Swissci 3 Well Low Profile (HR3-205/HR3-206) Plate Drawing

LCP 脂质立方相筛选
应用
脂质立方相结晶

特征
UVP覆盖膜（UV兼容）
无交叉污染
膜蛋白结晶
6 mm 直径滴孔区
当 LCP 板被密封时，0.1 毫米（100 微米）深的水滴井
最大滴体积为每孔 1.6 微升

Working with innovative scientists Professor Gebhard Schertler and Pat Edwards from the MRC laboratory in Cambridge, Swissci AG developed a new system for setting up LCP screens.

The Swissci LCP plate ensures crystallography set-up is fast, cost effective and robotically adaptable. In addition Ultra Violet light can be used with the glass / UVP polymers to visualize proteins without the light scattering associated with traditional polymeric solutions.

The LCP technique for crystallizing membrane proteins can be difficult and time-consuming to set up as it utilizes highly viscous lipid mesophases to reconstitute proteins. Swissci AG and MRC overcame these problems with the LCP plate. This product combines an easy to use sandwich system with dedicated coupling tapes and thin film UVP cover plates. It conforms to SBS standards and thus is perfect for modern automation applications where high throughput is required.

The Advantages of the LCP plate
• Ready to use the plate fits laboratory robotics and uses a Swissci unique polymer to ensure UV visualization is not compromised by polarization.
• Easy sealing with dry tabbed adhesive tape exposure and thin UVP cover film. Included in the kit is a plate leveling device to ensure the cover is perfectly adhered to the bottom LCP plate.
• No cross contamination and SBS standard.
• Unique low tack plate security allows for the sandwich plate to be removed from the base plate when required – in-situ x-ray data collection and structure determination is then enabled.

Here’s a description of the LCP plate from bottom to top. a) An SBS standard base plate frame support. b) 0.7 mm thick UVP plastic slide drop support containing all 96 drop wells with 0.1 mm thick layer of low tack sealant (no sealant in drop area). Flat, circular, 6 mm diameter drop wells to contain the LCP, sample and reagent. c) Removable brown/tan paper protects sealant until plate is ready to use. d) 0.1 mm thick UVP sealing film. e) Removable protective dust cover. The kit is completed with a Swissci plate leveling device.

To use the LCP plate, pipette LCP, sample and reagent into the 96 drop wells. Peel back and remove the brown/tan paper to expose the adhesive. Place the sealing film onto the LCP plate. Remove the protective film for viewing.

Maximum drop volume is 1.6 microliters per well.

描述
脂质立方相结晶 (LCP) 板有助于实现 LCP 结晶设置的自动化并提高产量。这种新颖的系统使 LCP 筛选能够准确、轻松地进行 – 使用手动或自动系统来完成解决方案的交付。

Swissci AG 与剑桥 MRC 实验室的创新科学家 Gebhard Schertler 教授和 Pat Edwards 教授合作，开发了一种用于设置 LCP 屏幕的新系统。

Swissci LCP 板确保晶体学设置快速、经济高效且机器人适应性强。此外，紫外光可与玻璃/UVP 聚合物一起使用，以显示蛋白质，而不会产生与传统聚合物溶液相关的光散射。

用于结晶膜蛋白的 LCP 技术可能既困难又耗时，因为它利用高粘性脂质中间相来重建蛋白质。 Swissci AG 和 MRC 用 LCP 印版克服了这些问题。该产品将易于使用的夹层系统与专用耦合带和薄膜 UVP 盖板相结合。它符合 SBS 标准，因此非常适合需要高吞吐量的现代自动化应用。

LCP板的优点
• 即用型板适合实验室机器人并使用 Swissci 独特的聚合物来确保紫外线可视化不会因偏振而受到影响。
• 使用干燥的标签胶带暴露和薄的 UVP 覆盖膜轻松密封。套件中包含一个平板校平装置，以确保盖子完美地粘附在底部 LCP 平板上。
• 无交叉污染和SBS 标准。
• 独特的低粘性板安全性允许在需要时将夹层板从基板上移除——然后启用原位 X 射线数据收集和结构确定。

这是 LCP 板从下到上的描述。 a) SBS 标准底板框架支撑。 b) 0.7 毫米厚的 UVP 塑料载玻片液滴支架，包含所有 96 个液滴孔和 0.1 毫米厚的低粘性密封剂层（液滴区域没有密封剂）。扁平、圆形、直径为 6 毫米的滴孔，用于容纳 LCP、样品和试剂。 c) 可移除的棕色/棕褐色纸可保护密封胶，直到印版准备好使用。 d) 0.1 毫米厚的 UVP 密封膜。 e) 可拆卸的防尘罩。该套件配有 Swissci 板调平装置。

要使用 LCP 板，请将 LCP、样品和试剂移入 96 个滴孔中。剥开并去除棕色/棕褐色纸以露出粘合剂。将密封膜放在 LCP 板上。取下保护膜进行查看。

最大滴体积为每孔 1.6 微升。



Lipidic Cubic Phase Screening Kit

 HR3-186 LCP Lipidic Cubic Phase Screen Kit User Guide

The sample solution is pipetted into each of the 96 wells with up to 0.35ml dialysis solution used for exchange. The Diaplate is ANSI/SLAS 1 2004 standards providing high throughput use with robotic dispensing. Dialysis is recommended for 2-3 hours and then the dialysis buffer is changed being left for another 2-3 hours to achieve over 90% exchange. Further dialysis steps can be carried out as required. Incubation, rocking table for speed and moisture chamber for full humidification can be applied to the experiment if desired.

Each of the 96 wells has a separate regenerated cellulose membrane inside meaning no cross contamination or leakage between wells. The size of the compounds that pass through the membrane are determined by its Molecular Weight Cut Off (MWCO). The Swissci Diaplate comes as standard with a specially selected membrane that has a MWCOs of 10,000 Daltons. The Diaplate kit includes: Diaplate with 200 Micron Pressure Adhesive Spacer, 200 Micron UVP Cover Film, engraved UV Protective Cover and a sealing Paddle. Swissci W82010.

Diaplate Specifications
Membrane molecular weight cut-off (MWCO) 10kDa (10,000 Daltons)
Maximum sample capacity 3.2 µl
Maximum dialysate or reagent capacity 350 µl
Plate dimensions 127.76 +/- 0.5 x 85.48 +/- 0.5 mm

描述
一次性 Diaplate 是一种 96 孔微量透析板，非常适合从极小体积到最大 3.2 µl 的蛋白质脱盐。

将样品溶液移入 96 个孔中的每个孔中，最多 0.35 毫升透析液用于交换。 Diaplate 符合 ANSI/SLAS 1 2004 标准，可通过机器人点胶实现高吞吐量使用。建议透析 2-3 小时，然后更换透析缓冲液，再放置 2-3 小时以达到 90% 以上的交换。可以根据需要进行进一步的透析步骤。如果需要，可以将孵化、速度摇床和湿度室用于完全加湿。

96 个孔中的每一个都有一个单独的再生纤维素膜，这意味着孔之间没有交叉污染或泄漏。通过膜的化合物的大小由其截留分子量 (MWCO) 决定。 Swissci Diaplate 标配特别选择的膜，其 MWCO 为 10,000 道尔顿。 Diaplate 套件包括： Diaplate 与 200 微米压力粘合剂垫片、200 微米 UVP 覆盖膜、雕刻的 UV 保护盖和密封桨。 Swissci W82010。

表盘规格
膜截留分子量 (MWCO) 10kDa（10,000 道尔顿）
最大样品容量 3.2 µl
最大透析液或试剂容量 350 µl
板尺寸 127.76 +/- 0.5 x 85.48 +/- 0.5 毫米

Show More

Diaplate

 HR3-253 Diaplate User Guide HR3-253 Diaplate Product Information

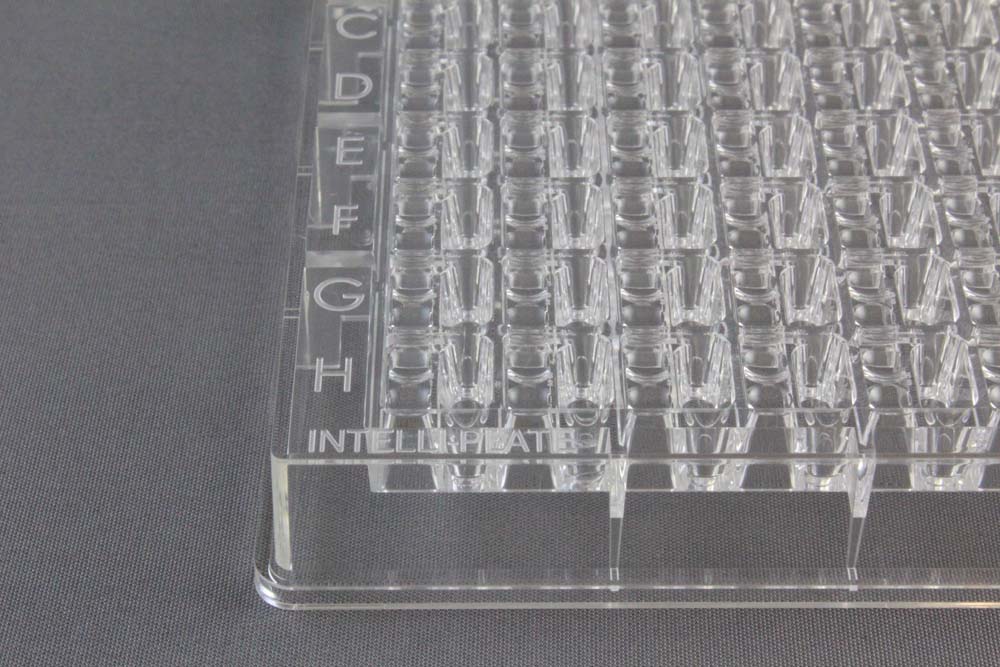

The Intelli-Plate 96-2 Original crystallization plate (Art Robbins 102-0011-00 Hampton Research HR3-297 and HR3-299) is an optically clear plate for sitting drop vapor diffusion crystallization. All wells have standard 9 mm spacing to conform to SBS standards with 8 vertical wells along the left side of the plate (A-H) and 12 horizontal wells along the top of the plate (1-12). This plate features two locations for sample per reservoir. The sample drop locations are located along the left side of the reagent reservoir, along the Y-axis of the plate. The sample wells are concave depressions on the ledge above the adjacent, flat bottom reagent reservoir. One sample well is located above the second sample well. The top sample well can hold 10 µl or less of sample. The lower sample well can hold 4 µl or less of sample. The reagent reservoir is typically filled with 100 µl of reagent and is capable of holding up to 300 µl of reagent. The sidewalls separating adjacent wells or reservoirs are 0.9 and 1.0 mm thick in order to offer a larger area for sealing the plate and a separation of the reservoirs. This plate is rigid, with virtually no torsional flex and is designed for either manual or automated pipetting. Plates are made of polystyrene.

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).

Intelli-Plate 96-2 原版
应用
坐滴结晶
特征
SBS 微孔板占地面积和标准孔间距
光学透明的孔提供卓越的晶体成像
井的布局使晶体收获更容易
2 个带有小滴和大滴的井
圆形水库角以防止水库 (MPD) 蠕变
板材材质：聚苯乙烯
描述
Art Robbins Instruments 开发了适用于晶体学应用的理想板系列：Intelli-Plate。 Intelli-Plate 的所有版本都具有 SBS 微孔板占地面积和标准孔间距，是手动或自动处理的理想选择。

Intelli-Plate 96-2 原始结晶板（Art Robbins 102-0011-00 Hampton Research HR3-297 和 HR3-299）是一种用于坐滴蒸气扩散结晶的光学透明板。所有孔都具有标准的 9 毫米间距，以符合 SBS 标准，沿板左侧 (A-H) 有 8 个垂直孔，沿板顶部 (1-12) 有 12 个水平孔。该板具有每个储液器的两个样品位置。样品滴位置位于试剂容器的左侧，沿板的 Y 轴。样品井是相邻平底试剂储液器上方壁架上的凹坑。一个样品井位于第二个样品井上方。顶部样品孔可容纳 10 µl 或更少的样品。较低的样品孔可以容纳 4 µl 或更少的样品。试剂容器通常装有 100 µl 试剂，最多可容纳 300 µl 试剂。分隔相邻井或水库的侧壁为 0.9 和 1.0 毫米厚，​​以便为密封板和水库的分离提供更大的区域。该板是刚性的，几乎没有扭转弯曲，专为手动或自动移液而设计。板由聚苯乙烯制成。

可以使用 Crystal Clear Sealing Film (HR3-609)、3 英寸宽的 Crystal Clear Sealing Tape (HR4-506) 或 ClearSeal Film™ (HR4-521) 密封板。



Intelli-Plate 96-2 Original

Intelli-Plate 96-2 Original

 Intelli-Plate Details & Comparison Plate Drawing Intelli-Plate 102-0011-00

APPLICATIONS

• Microbatch crystallization

FEATURES

• Conical, flat bottom wells
• Hydrophobic or hydrophilic versions
• Compact size
• Supplied with cover
• Terasaki plate

DESCRIPTION

The 72 Well Microbatch Plate consists of a 6 by 12 well layout. Paraffin, Silicon, or Al’s Oil is poured into the trough area of the plate, submerging all 72 wells under oil. Sample and reagent are then pipetted into each of the wells. The plate is available as a plasma-treated, hydrophilic version for screening or an untreated, hydrophobic version for optimization. The hydrophilic version gives better liquid handling with small volumes, while the hydrophobic version reduces crystal nucleation and helps to prevent the crystals from sticking to the plastic.

应用
微批次结晶
特征
锥形平底井
疏水或亲水版本
紧凑的尺寸
提供盖子
寺崎盘子
描述
72 孔微批次板由 6 x 12 孔布局组成。 将石蜡、硅或铝油倒入板的槽区，将所有 72 口井淹没在油下。 然后将样品和试剂移入每个孔中。 该板可作为经过等离子体处理的亲水版本用于筛选或未经处理的疏水版本用于优化。 亲水版本可在小体积下提供更好的液体处理，而疏水版本可减少晶体成核并有助于防止晶体粘附在塑料上。

• 板尺寸：83.3 毫米 x 58.0 毫米 x 10.0 毫米
• 具有 11 µl 液滴体积的锥形孔
• 平底井径：1.3 毫米
• 提供盖子

CAT NO

HR3-081

NAME

DESCRIPTION

untreated, hydrophobic – 270 plate case

PRICE

$254.00

CAT NO

HR3-121

NAME

DESCRIPTION

treated, hydrophilic – 270 plate case

PRICE

$256.00

Temporarily Unavailable
More Available Soon!

SUPPORT MATERIAL(S)

RELATED ITEM(S)

• Paraffin & Silicon Oil

REFERENCES

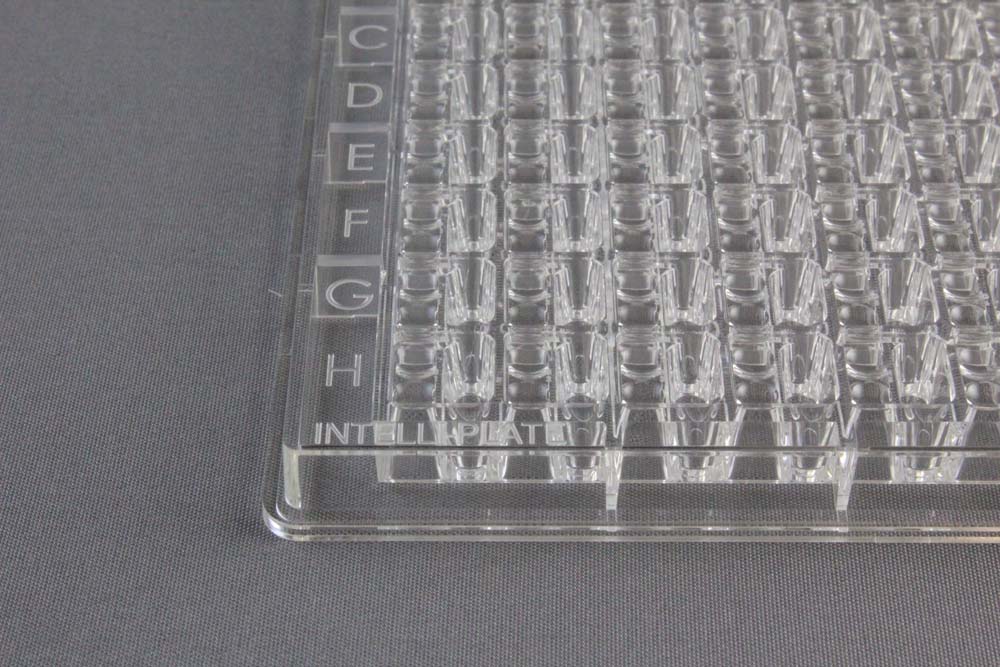

The Intelli-Plate 96-2 Low Profile (Art Robbins 102-0001-10 Hampton Research HR3-116 and HR3-117) is a low profile version of the Intelli-Plate 96-2 LVR, Low Volume Reservoir (Art Robbins 102-0001-00 Hampton Research HR3-143 and HR3-145).

Reservoir volume: 100 µl max.
Drop well volume: 4 µl and 10 µl max.
Plates are made of cyclic olefin.
UV transmissible and low birefringence.

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).

Intelli-Plate 96-2 薄型
应用
坐滴结晶
特征
SBS 微孔板占地面积和标准孔间距
光学透明的孔提供卓越的晶体成像
井的布局使晶体收获更容易
2 个带有小滴和大滴的井
圆形水库角以防止水库 (MPD) 蠕变
板料：环烯烃
紫外线透射和低双折射
描述
Art Robbins Instruments 开发了适用于晶体学应用的理想板系列：Intelli-Plate。 Intelli-Plate 的所有版本都具有 SBS 微孔板占地面积和标准孔间距，是手动或自动处理的理想选择。

Intelli-Plate 96-2 Low Profile（Art Robbins 102-0001-10 Hampton Research HR3-116 和 HR3-117）是 Intelli-Plate 96-2 LVR、低容量水库（Art Robbins 102- 0001-00 汉普顿研究 HR3-143 和 HR3-145）。

水库体积：最大 100 µl。
滴孔体积：最大 4 µl 和 10 µl。
板由环烯烃制成。
可透过紫外线和低双折射。

可以使用 Crystal Clear Sealing Film (HR3-609)、3 英寸宽的 Crystal Clear Sealing Tape (HR4-506) 或 ClearSeal Film™ (HR4-521) 密封板。

Intelli-Plate 96-2 Low Profile

Intelli-Plate 96-2 Low Profile

 Intelli-Plate Details & Comparison Plate Drawing Intelli-Plate 102-0001-10

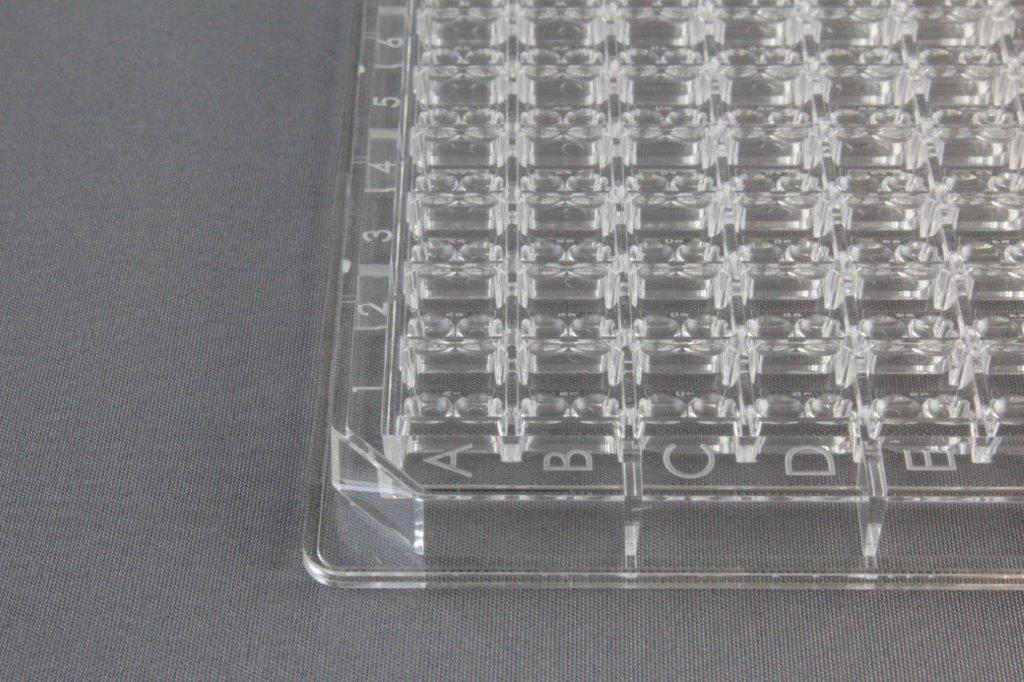

The CrystalMation Intelli-Plate 96-3 low-profile crystallization plate (Art Robbins 102-0001-13 Hampton Research HR3-118 and HR3-119) is a low profile version of the Intelli-Plate 96-3 LVR, Low Volume Reservoir (Art Robbins 102-0001-03 Hampton Research HR3-183 and HR3-185). The plate is designed for sitting drop vapor diffusion crystallization experiments. It is constructed from optically clear, UV-transmissible, chemically resistant plastic with superior low birefringence. The low-profile construction allows for higher density in plate storage and imaging systems, maximizing your investment and valuable space. The plate is designed to be a substantial improvement in existing low-profile plates, allowing for superior sealing due to thicker well design and a flat sealing surface. It has been built to the SBS (Society for Biomolecular Screening) standard dimensions with 8 vertical wells along the left side of the plate (A-H) and 12 horizontal wells along the top of the plate (1-12). It is compatible with automated instrumentation including the CrystalMation line of instruments from Rigaku. The plate features three identical sized sample drop wells per reservoir. The wells are concave depressions along the left side (Y-axis) of the plate and are located on the ledge above the adjacent, flat bottom reagent reservoir. Each well features a round bottom for easy crystal harvesting and can hold up to 1 µl of sample. The multiple well design allows for combinatorial experiments, complex co-crystallization experiments for ligand screening, or for drop concentration variation. The reagent reservoir is typically filled with 50 to 70 µl of reagent. Reservoir volume: 100 µl max. Drop well volume: 1 µl max. Plates are made of cyclic olefin. UV transmissible and low birefringence.

CrystalMation Intelli-Plate 96-3 薄型
应用
坐滴结晶
特征
SBS 微孔板占地面积和标准孔间距
光学透明的孔提供卓越的晶体成像
井的布局使晶体收获更容易
3 孔是优化蛋白质浓度、添加剂筛选、滴比和组合实验的理想选择
圆形水库角以防止水库 (MPD) 蠕变
板料：环烯烃
紫外线透射和低双折射
描述
Art Robbins Instruments 开发了适用于晶体学应用的理想板系列：Intelli-Plate。 Intelli-Plate 的所有版本都具有 SBS 微孔板占地面积和标准孔间距，是手动或自动处理的理想选择。

CrystalMation Intelli-Plate 96-3 薄型结晶板（Art Robbins 102-0001-13 Hampton Research HR3-118 和 HR3-119）是 Intelli-Plate 96-3 LVR、低容量水库（艺术罗宾斯 102-0001-03 汉普顿研究 HR3-183 和 HR3-185）。该板专为坐滴蒸气扩散结晶实验而设计。它由光学透明、紫外线可透射、耐化学腐蚀的塑料制成，具有优异的低双折射。低调的结构允许在印版存储和成像系统中实现更高的密度，从而最大限度地利用您的投资和宝贵的空间。该板的设计是对现有低剖面板的重大改进，由于较厚的井设计和平坦的密封表面，可以实现卓越的密封。它按照 SBS（生物分子筛选学会）标准尺寸建造，在板的左侧有 8 个垂直孔 (A-H)，在板顶部有 12 个水平孔 (1-12)。它与自动化仪器兼容，包括 Rigaku 的 CrystalMation 系列仪器。该板的每个储液器具有三个相同大小的样品滴孔。孔是沿板左侧（Y 轴）的凹坑，位于相邻的平底试剂储液器上方的壁架上。每个孔都有一个圆底，便于收集晶体，最多可容纳 1 µl 样品。多孔设计允许进行组合实验、用于配体筛选的复杂共结晶实验或液滴浓度变化。试剂容器通常装有 50 到 70 µl 的试剂。水库体积：最大 100 µl。滴孔体积：最大 1 µl。板由环烯烃制成。可透过紫外线和低双折射。

CrystalMation Intelli-Plate 96-3 low-profile

CrystalMation Intelli-Plate 96-3 low-profile

 Intelli-Plate Details & Comparison Plate Drawing Intelli-Plate 102-0001-13

The Intelli-Plate 96-2 LVR (Art Robbins 102-0001-00 Hampton Research HR3-143 and HR3-145) is a Low Volume Reservoir version of the Intelli-Plate 96-2 Original (Art Robbins 102-0011-00 Hampton Research HR3-297 and HR3-299).

Reservoir volume: 100 µl max.
Drop well volume: 1 µl max.
Plates are made of cyclic olefin.
UV transmissible and low birefringence.

Intelli-Plate 96-2 LVR
应用
坐滴结晶
特征
SBS 微孔板占地面积和标准孔间距
光学透明的孔提供卓越的晶体成像
井的布局使晶体收获更容易
2 个带有小滴和大滴的井
圆形水库角以防止水库 (MPD) 蠕变
板料：环烯烃
紫外线透射和低双折射
描述
Art Robbins Instruments 开发了适用于晶体学应用的理想板系列：Intelli-Plate。 Intelli-Plate 的所有版本都具有 SBS 微孔板占地面积和标准孔间距，是手动或自动处理的理想选择。

Intelli-Plate 96-2 LVR（Art Robbins 102-0001-00 Hampton Research HR3-143 和 HR3-145）是 Intelli-Plate 96-2 Original（Art Robbins 102-0011-00 Hampton研究 HR3-297 和 HR3-299）。

水库体积：最大 100 µl。
滴孔体积：最大 1 µl。
板由环烯烃制成。
可透过紫外线和低双折射。

Intelli-Plate 96-2 LVR

Intelli-Plate 96-2 LVR

 Intelli-Plate Details & Comparison Plate Drawing Intelli-Plate 102-0001-00

The Intelli-Plate 96-3 LVR (Art Robbins 102-0001-03 Hampton Research HR3-183 and HR3-185) is a Low Volume Reservoir, 3 drop well version of the Intelli-Plate 96-2 Original (Art Robbins 102-0011-00 Hampton Research HR3-297 and HR3-299).

Reservoir volume: 100 µl max.
Typical reservoir volume 50 µl.
Drop well volume: 1 µl max.
Plates are made of cyclic olefin.
UV transmissible and low birefringence.

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).

Intelli-Plate 96-3 LVR
应用
坐滴结晶
特征
SBS 微孔板占地面积和标准孔间距
光学透明的孔提供卓越的晶体成像
井的布局使晶体收获更容易
3 孔是优化蛋白质浓度、添加剂筛选、滴比和组合实验的理想选择
圆形水库角以防止水库 (MPD) 蠕变
板料：环烯烃
紫外线透射和低双折射
描述
Art Robbins Instruments 开发了适用于晶体学应用的理想板系列：Intelli-Plate。 Intelli-Plate 的所有版本都具有 SBS 微孔板占地面积和标准孔间距，是手动或自动处理的理想选择。

Intelli-Plate 96-3 LVR（Art Robbins 102-0001-03 Hampton Research HR3-183 和 HR3-185）是 Intelli-Plate 96-2 Original（Art Robbins 102- 0011-00 汉普顿研究 HR3-297 和 HR3-299）。

水库体积：最大 100 µl。
典型的水库体积 50 µl。
滴孔体积：最大 1 µl。
板由环烯烃制成。
可透过紫外线和低双折射。

可以使用 Crystal Clear Sealing Film (HR3-609)、3 英寸宽的 Crystal Clear Sealing Tape (HR4-506) 或 ClearSeal Film™ (HR4-521) 密封板。

Intelli-Plate 96-3 LVR

Intelli-Plate 96-3 LVR

 Intelli-Plate Details & Comparison Plate Drawing Intelli-Plate 102-0001-03

The Intelli-Plate 96-2 Shallow Well (Art Robbins 102-0001-20 Hampton Research HR3-163 and HR3-164) has two identically sized 2 µL reaction wells and a 140 µL screen reservoir. Each of the two identical well features a round bottom shallow well design for easy crystal harvesting and is arranged in an 8 x 12 array. Plates are made of cyclic olefin. UV transmissible and low birefringence. This plate is also available in a low profile height (Art Robbins 102-0001-21 Hampton Research HR3-181 and HR3-182).

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).

Intelli-Plate 96-2 浅孔
应用
坐滴结晶
特征
SBS 微孔板占地面积和标准孔间距
光学透明的孔提供卓越的晶体成像
井的布局使晶体收获更容易
2 个相同的浅水井
圆形水库角以防止水库 (MPD) 蠕变
板料：环烯烃
紫外线透射和低双折射
描述
Art Robbins Instruments 开发了适用于晶体学应用的理想板系列：Intelli-Plate。 Intelli-Plate 的所有版本都具有 SBS 微孔板占地面积和标准孔间距，是手动或自动处理的理想选择。

Intelli-Plate 96-2 浅井（Art Robbins 102-0001-20 Hampton Research HR3-163 和 HR3-164）有两个大小相同的 2 µL 反应孔和一个 140 µL 的筛管。两个相同的井中的每一个都具有圆底浅井设计，便于晶体收集，并以 8 x 12 阵列排列。板由环烯烃制成。可透过紫外线和低双折射。该板还提供低轮廓高度（Art Robbins 102-0001-21 Hampton Research HR3-181 和 HR3-182）。

可以使用 Crystal Clear Sealing Film (HR3-609)、3 英寸宽的 Crystal Clear Sealing Tape (HR4-506) 或 ClearSeal Film™ (HR4-521) 密封板。

Intelli-Plate 96-2 Shallow Well

Intelli-Plate 96-2 Shallow Well

 Intelli-Plate Details & Comparison Plate Drawing Intelli-Plate 102-0001-20

The Intelli-Plate 96-2 Shallow Well Low Profile (Art Robbins 102-0001-21 Hampton Research HR3-181 and HR3-182) has two identically sized 2 µL reaction wells and a 140 µL screen reservoir. Each of the two identical well features a round bottom shallow well design for easy crystal harvesting and is arranged in an 8 x 12 array. Plates are made of cyclic olefin. UV transmissible and low birefringence. The height of Intelli-Plate Low Profile is 0.315 inches (8.001 mm).

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).

Intelli-Plate 96-2 浅孔低剖面
应用
坐滴结晶
特征
SBS 微孔板占地面积和标准孔间距
光学透明的孔提供卓越的晶体成像
井的布局使晶体收获更容易
2 个相同的浅水井
圆形水库角以防止水库 (MPD) 蠕变
板料：环烯烃
紫外线透射和低双折射
描述
Art Robbins Instruments 开发了适用于晶体学应用的理想板系列：Intelli-Plate。 Intelli-Plate 的所有版本都具有 SBS 微孔板占地面积和标准孔间距，是手动或自动处理的理想选择。Intelli-Plate 96-2 浅井低剖面（Art Robbins 102-0001-21 Hampton Research HR3-181 和 HR3-182）具有两个相同大小的 2 µL 反应孔和一个 140 µL 筛网储层。两个相同的井中的每一个都具有圆底浅井设计，便于晶体收集，并以 8 x 12 阵列排列。板由环烯烃制成。可透过紫外线和低双折射。 Intelli-Plate Low Profile 的高度为 0.315 英寸（8.001 毫米）。可以使用 Crystal Clear Sealing Film (HR3-609)、3 英寸宽的 Crystal Clear Sealing Tape (HR4-506) 或 ClearSeal Film™ (HR4-521) 密封板。

Intelli-Plate 96-2 Shallow Well Low Profile

Intelli-Plate 96-2 Shallow Well Low Profile

 Intelli-Plate Details & Comparison Plate Drawing Intelli-Plate 102-0001-21

The Intelli-Plate Flat Shelf (Art Robbins 102-0001-01 Hampton Research HR8-171 and HR8-172) crystallization plate is a flat drop shelf version of the original Intelli-Plate.

Reservoir volume: 300 µl max.
No drop well.
Plates are made of polystyrene.

The plates can be sealed using Crystal Clear Sealing Film (HR3-609), 3 inch wide Crystal Clear Sealing Tape (HR4-506) or ClearSeal Film™ (HR4-521).

Intelli-Plate 平板货架
应用
坐滴结晶
特征
SBS 微孔板占地面积和标准孔间距
光学透明的孔提供卓越的晶体成像
井的布局使晶体收获更容易
圆形水库角以防止水库 (MPD) 蠕变
板材材质：聚苯乙烯
描述
Art Robbins Instruments 开发了适用于晶体学应用的理想板系列：Intelli-Plate。 Intelli-Plate 的所有版本都具有 SBS 微孔板占地面积和标准孔间距，是手动或自动处理的理想选择。Intelli-Plate Flat Shelf（Art Robbins 102-0001-01 Hampton Research HR8-171 和 HR8-172）结晶板是原始 Intelli-Plate 的平落架版本。

水库容积：最大 300 µl。
没有下降好。
板由聚苯乙烯制成。

可以使用 Crystal Clear Sealing Film (HR3-609)、3 英寸宽的 Crystal Clear Sealing Tape (HR4-506) 或 ClearSeal Film™ (HR4-521) 密封板。

Intelli-Plate Flat Shelf

Intelli-Plate Flat Shelf

 Intelli-Plate Details & Comparison Plate Drawing Intelli-Plate 102-0001-01

CrystalWand™ 磁性
应用
CrystalCap Magnetic 和 CrystalCap Copper Magnetic 处理工具
描述
CrystalWand Magnetic 专为在瓶盖从样品瓶到测角仪头以及从测角仪到样品瓶的传输过程中与 CrystalCap、CrystalCap ALS 和 CrystalCap SPINE 系统一起使用而设计。 6 1/2 英寸（165 毫米）长的镀铬钢棒具有一个塑料外壳，其中包含一个弹簧张紧的柱塞，当按下该柱塞时，将非磁性钢平台移离棒末端的磁铁。 这会导致钢制 CrystalCap 与魔杖分离并轻松放入小瓶中。 当平台缩回时，魔杖牢固地固定着钢制 CrystalCap Magnetic。

CrystalWand Magnetic, Straight
